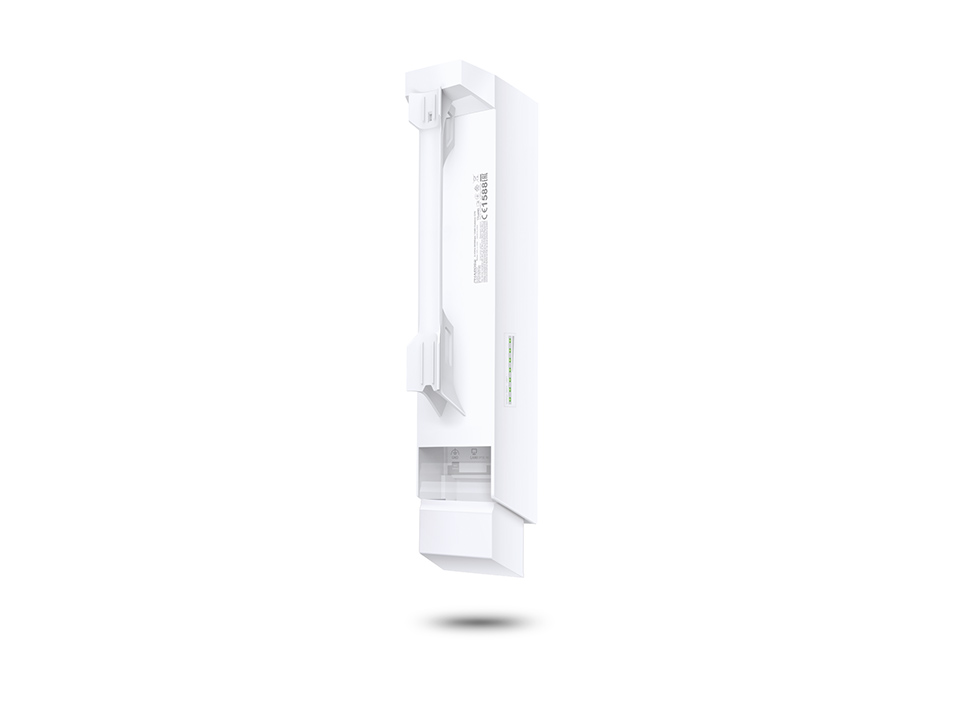

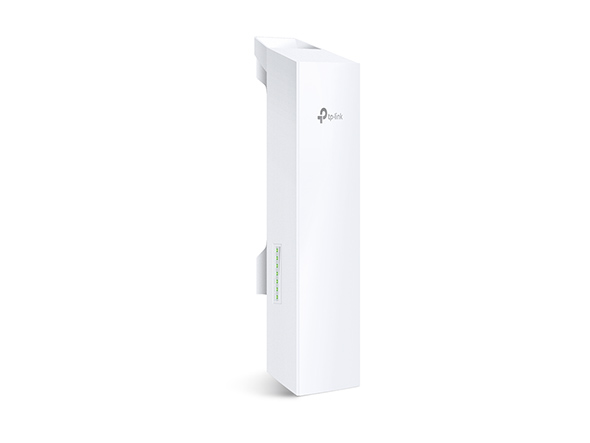

TP Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

Name: TP Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE
Brand: TP Link
SKU: CPE220
Price: 65.00 USD
Availability: InStock

SKU / Item Code: CPE220

$65.00

Low Stock · 2

AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes

Nationwide delivery

Warranty backed

Easy returns

Description

Built-in 12dBi 2x2 dual-polarized directional MIMO antenna Adjustable transmission power from 0 to 30dBm/1000mw System-level optimizations for more than 13km long range wireless transmission TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications Centralized Management System – Pharos Control AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely. TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users. 13km+ Wireless Data Transmission Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.

Technical Specifications

ProcessorQualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory64MB DDR2 RAM, 8MB Flash

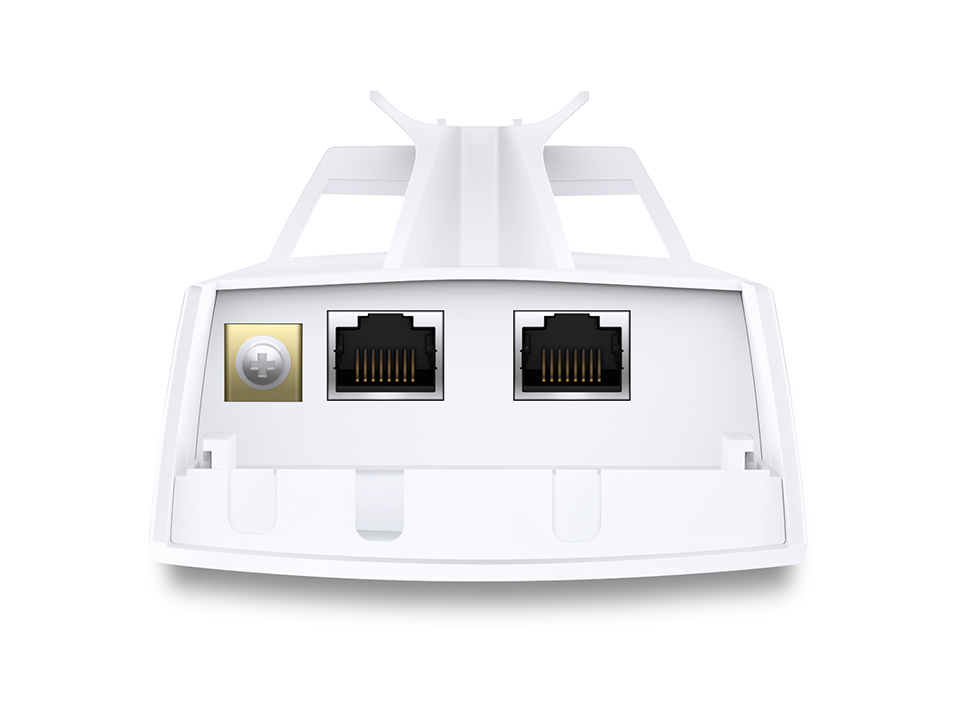

Interface1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button

Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC

Max. Power Consumption10.8 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions ( W x D x H )11×3.1×2.1 inch (276×79×60 mm)

AntennaBuilt-in 12dBi 2x2 Dual-polarized Directional Antenna Beam Width: 60° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet

Protection15KV ESD Protection 6KV Lightning Protection

EnclosureOutdoor ASA stabilized plastic material IPX5 waterproof Certification

Wireless SpeedsUp to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)

Frequency2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmission Power30dBm/1000mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
